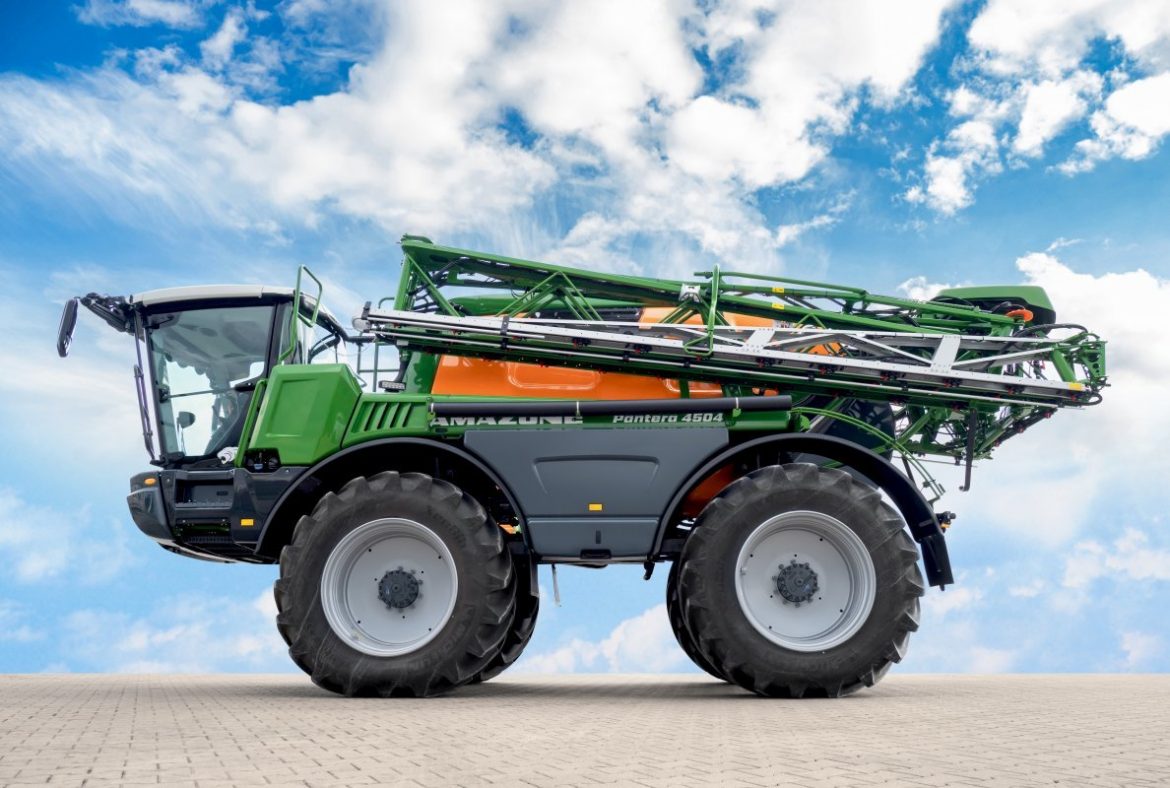

AMAZONE launches a new generation of the Pantera self-propelled crop protection sprayer. The new Pantera 4504 sets the highest standards in precision plant protection application and ease of operation. A modified spray liquid circuit, changes to the operator station and an increased ease of maintenance offer significant added value.
The new Pantera 4504 series focuses on increasing work rates and reducing the work load on the driver. The all-new SmartCenter and complete operator station are securely protected under the access cover on the left side of the sprayer. Here the new 60 litre induction bowl, which quickly inducts powder and granules with huge effectiveness, is also located. The repositioning of the pressure-stable and liquid-fertiliser proof twin AR piston diaphragm pumps, with a total output capacity of 520 l/min, over to the right-hand side results in considerable noise reduction during the filling process and yet offers a suction capacity of up to 700 l/min and also easy accessibility for the operator. The SmartCenter offers the ideal solution for every customer requirement: from the simple and clever Comfort-Pack with the TwinTerminal 3.0 to Comfort-Pack plus for maximum convenience. On Comfort-Pack plus, instead of operating taps, the TwinTerminal 7.0 makes machine operation much easier with its pressure-sensitive touchscreen. The operator only has to select the desired function and the sprayer adjusts itself fully automatically. The spray agent tank and the fresh water tank are filled to the required level. An automatic cleaning program can be started at the touch of a button.
The new Pantera 4504 sets the highest standards in precision plant protection application and operational comfort.
The new easily accessible fuel tank holds up to 290 litres for high outputs and provides enough fuel even on long workdays. The 20 litre DEF tank is located next to it.
The new AmaDrive 7.0 vehicle terminal has now been integrated in the ergonomically designed armrest. All machine-specific functions can be clearly displayed and intuitively operated on the 7” colour display.
The 8” AmaTron 4 terminal and the 12.1” AmaPad 2 are available for sprayer ISOBUS operation. Both terminals have a multi-touch colour display. The practical MiniView layout means that handling the screen is extremely comfortable and meets the highest demands of precision farming.
The new Pantera 4504 sets the highest standards in precision plant protection application and operational comfort.
The ContourControl active boom guidance system and the SwingStop boom tip swing compensation ensure the best boom ride, even at the larger working widths of 40 m. ContourControl offers negative geometry as well and therefore ensures that the distance to the target is always exactly maintained. And whilst ContourControl provides excellent vertical boom guidance, SwingStop optimises the horizontal position, especially on the larger booms. This exceptionally fast and precise hydraulic boom guidance means higher forward speeds are possible during application. In conjunction with the AmaSelect electric individual nozzle control, this takes you to the highest level of precision.
